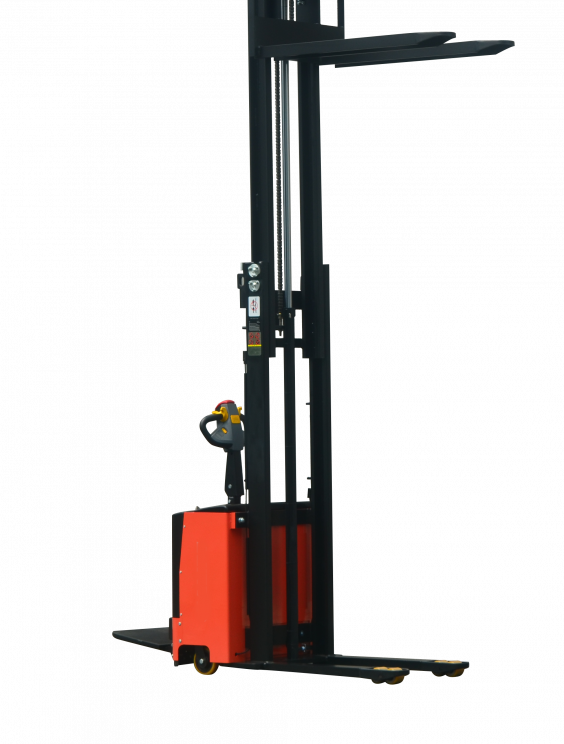

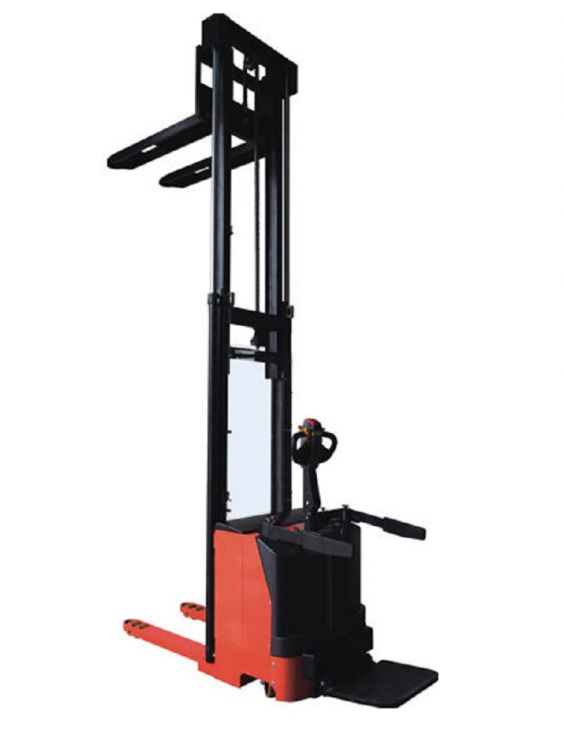

7SMITH Electric Stacker with stand S-Ride 2,6m 260cm 1500 kg
The Ergonomic and robust design of this electric pallet stacker with stand 7SMITH S-Ride helps provide maximum operator comfort during usage. A strong and robust stand will give the operator the comfort and ease of use since the operator doesn’t need to walk with the stacker. This will speed up the work process and make employees happier. On both sides, electric stacker 7SMITH S-ride is equipped with sidearms, which make the drive convenient and safe. It is easy to operate and its two-handed operation system allows precise lifting process. The Electric stacker 7SMITH S-Ride can be used for lifting and transporting heavy objects and pallets. The electric stacker is an affordable, lightweight, and powerful forklift to have around. This electric pallet stacker with a padel is designed to be used with two hands and it is the most stable in this category of electric pallet stackers with stand. The electric stacker S-Ride weights 690 kg, therefore is very robust and stable and can lift various objects and pallets. When max lowered it measure 1877 mm in height. The electric stacker has two motors. One is for lifting and one if for driving. Lifting motor has the power of 24V/2,2KW, and driving motor has the power of 24V/0.75KW. This electric stacker comes with 2 batteries and a charger. Batteries are very powerful with capacity 2×12V/120Ah which allows you to use an electric stacker for several hours without recharging. Recharging is very fast, therefore, you will not waste time waiting. The maneuverability and ease of operation with this electric stacker will allow you to use it for lifting pallets or objects from the ground and putting them on the shelf or in the truck or for unloading the truck. Electric stacker 7SMITH S-Ride is also designed in a way that can be easily operated and it doesn’t use a lot of space. It has a 12-month warranty and service is available in the European Union.
What is the price of an electric stacker with a padel 7SMITH S-Ride?
Electric stacker with stand 7SMITH is one of the cheapest electric stackers out there. However, the price of the electric stacker does not reflect on the quality. Despite it is affordable, the electric stacker with padel and side arms is made out of high-quality materials and it has implemented the latest lifting and driving technology. You can find the limited price of the electric pallet stacker above. The electric stacker has a 12-month warranty and comes with two batteries 2*12V/120AH.
Electric stackers use the battery as the power source through controlling DC motor on the driving wheel to fulfill the function of walking, DC motor convert the high-speed low torque to low-speed high torque through the gearbox, being implemented by driving wheel. The speed of walking is controlled by the accelerator.
Advantages of e stacker with stand 7SMITH:
- Robust and stable electric stacker with stand and side arms which make lifting and driving operations fast and safe. Employees can safely stand on the padel and drive on it while working.
- Stand and side are foldable and can be easily removed or added.
- Through it is an electric stacker with stand it is equipped with high-power and high performance lifting pump station, which ensures good lifting.
- The turtle speed switch on the handle makes low-speed control more precise.
- German imported waterproof micro-switches are built for usage in cold, damp, dusty, and other harsh environments.
- YONGCI motor drive system is small size, lightweight, low loss, and high efficiency.
Where to use e-stacker with padel 7SMITH?
Electric stacker with stand 7SMITH is a very affordable electric forklift, its value is easily reflected when it is introduced into the packaging or transporting processes of any industry. It eases into the workflow and helps double, even sometimes triple the efficiency of its users. With the electric stacker manual heavy lifting is eliminated from the workspace. This reduces any occurrence of accidents in the factory or warehouse. Since the source of power is electricity, the electric stacker is very clean and doesn’t produce and toxic gas, therefore it can be used indoors. There is no need for worry of tripping over wires and the need for cable management. The electric stacker uses a battery and comes with two batteries as stated earlier. This allows a seamless workflow. Since recharging is very fast. there is no need for stopping the workflow to charge the battery. This electric pallet stacker has been built to be very stable and robust, it can easily transport and lift heavy objects in different shapes.
Electric stacker 7SMITH is widely used in the paper, aluminum, textile, steel, logistics, farm, chemical, metal industries. Electric pallet stacker with stand 7SMITH S-Ride has a very robust body and it is easy to use. The electric stacker moves fast, however, it can be easily controlled and maneuvered. The electric stacker is beautiful and strong. With the electric pallet stacker, you will be able to automate operations and speed uplifting and transporting activities. The electric pallet stacker 7SMITH has a high degree of automation, simple operation and it is easy to understand. The body of the electric stacker is made of high-strength alloy materials and engineering plastics, which are durable in use. The electric stacker is easy to move and can be used for various sizes of packages.
Specification of 7SMITH Electric Stacker S-Ride with Stand 2.6m 260cm 1500 kg
| Model | 7SMITH Electric Stacker S-Ride with Stand 2.6m 260cm 1500 kg | |
| Power unit | electric | |
| Operation | pedestrian | |
| Rated traction weight Q | 1500 | kg |
| Load center c | 600 | mm |
| Axle center to fork face x | 695 | mm |
| Wheelbase y | 1148 | mm |
| Service weight with battery | 690 | kg |
| Wheels type | polyurethane | |
| Driving wheel size Φ | Φ210×70 | Φ×w(mm) |
| Bearing wheel size Φ | Φ80×70 | Φ×w(mm) |
| Additional wheels (dimensions） | Φ115×55 | Φ×w(mm) |
| Wheels, number front/rear (x = driven) | 1，4/2 | |
| Track width | 646 | b10 (mm) |
| Track width | 390/515 | b11 (mm) |
| Height of mast, lowered | 1877 | mm |
| Lift | 2600 | mm |
| Height of mast, extended | 3137 | h4 (mm) |
| Overall height(With handle | 1040/1415 | h14 (mm) |
| Lowered height | 86 | h13 (mm) |
| Overall length | 1890 | l1 (mm) |
| Length to fork face | 740 | l2 (mm) |
| Overall width | 808 | |
| Fork dimensions | 60/180/1150 | mm |
| Width of forks | 570 | b5 (mm) |
| Min. Ground clearance | 26 | m2 (mm) |
| Aisle width with pallet 1000 x 1200 across forks | 2110 | Ast (mm) |
| Aisle width with pallet 800 x 1200 along with forks | 2160 | Ast (mm) |
| Min. Turning radius | 1455 | Wa (mm) |
| Travel speed,laden/unladen | 4.2/4.5 | km/h |
| Lifting speed, with/without load | 90/130 | mm/s |
| Lowering speed, with/without load | 105/100 | mm/s |
| Maximum climbing ability, with/without load | 3/6 | mm/s |
| Service brake | electromagnetic | |
| Drive motor, 60-minute rating | 0.75 | kW |
| Lift motor rating at S3 15% | 2.2 | kW |
| Battery voltage/rated capacity | 2×12/120 | V/Ah |
| Battery weight (± 5%) | 2×35 | kg |
| Type of drive control | DC | |
| Noise level at operator‘s ear | ≤70 | dB(A) |
How to use an electric pallet stacker with stand 7SMITH S-Ride?
A single switch of a key starts the electric stacker. On the handle, there are two switches. One is moving the forks up and down and another is moving the electric stacker. If you are picking up the pallet you simply drive the electric stacker below the pallet and lift it a little bit. Then use another switch and drive the electric stacker to the desired location. When on desired location press the switch for lifting and lift the pallet to the desired height and move the electric stacker forward so the pallet is inside the truck or shelf. Then lower the forks so the pallet will touch the ground and move the forklift out. The same process can be used for lifting up other objects. If objects are not in a shape that can be lifted, place the object on the pallet and fasten it, so it will be stable. With 690kg the Electric stacker 7SMITH S-Ride has a very strong lifting and driving motor. It can lift a load that weighs 1500kg, 2.6m or 2600mm high. The driving speed is around 4.5 km per hour. The electric stacker weights around 690 kg and has two batteries with a capacity of 12V/120AH. The electric stacker 7SMITH is built to last and to withstand usage in factories or warehouses. The electric pallet stacker has a one-year warranty and it is serviced in the European Union.
How to use the Operating system on a Pallet stacker with padel 7SMITH S-Ride?
1) Turn the key to “on” position to start the e-stacker. Move handle to the operation area.
2) Rotate the accelerator button until the desired direction or going backward.
3) You control the speed with moving the move button until you reach the desired speed.
4) Drive the vehicle to the destination carefully. You can adjust the speed through the Fahrschalter.
The breaking system of Electric Stacker S-ride:
Breaking performance depends on road conditions and vehicle load conditions。
The break function can be activated in the following way：
- By moving the Fahrschalter to position ‘0’, The stacker will break until it stops.
- Move the travel switch in the opposite direction, the electric stacker will stop moving in one direction and start moving in the opposite direction.
- E-stacker will break if the handle is moved up and down to the braking area (” B “). If the handle is moved to the braking area (” B “) the electric stacker brake until it stops.
- Belly switch – is an emergency button. If the button is activated it can prevent that the operator will be squeezed and injured.
